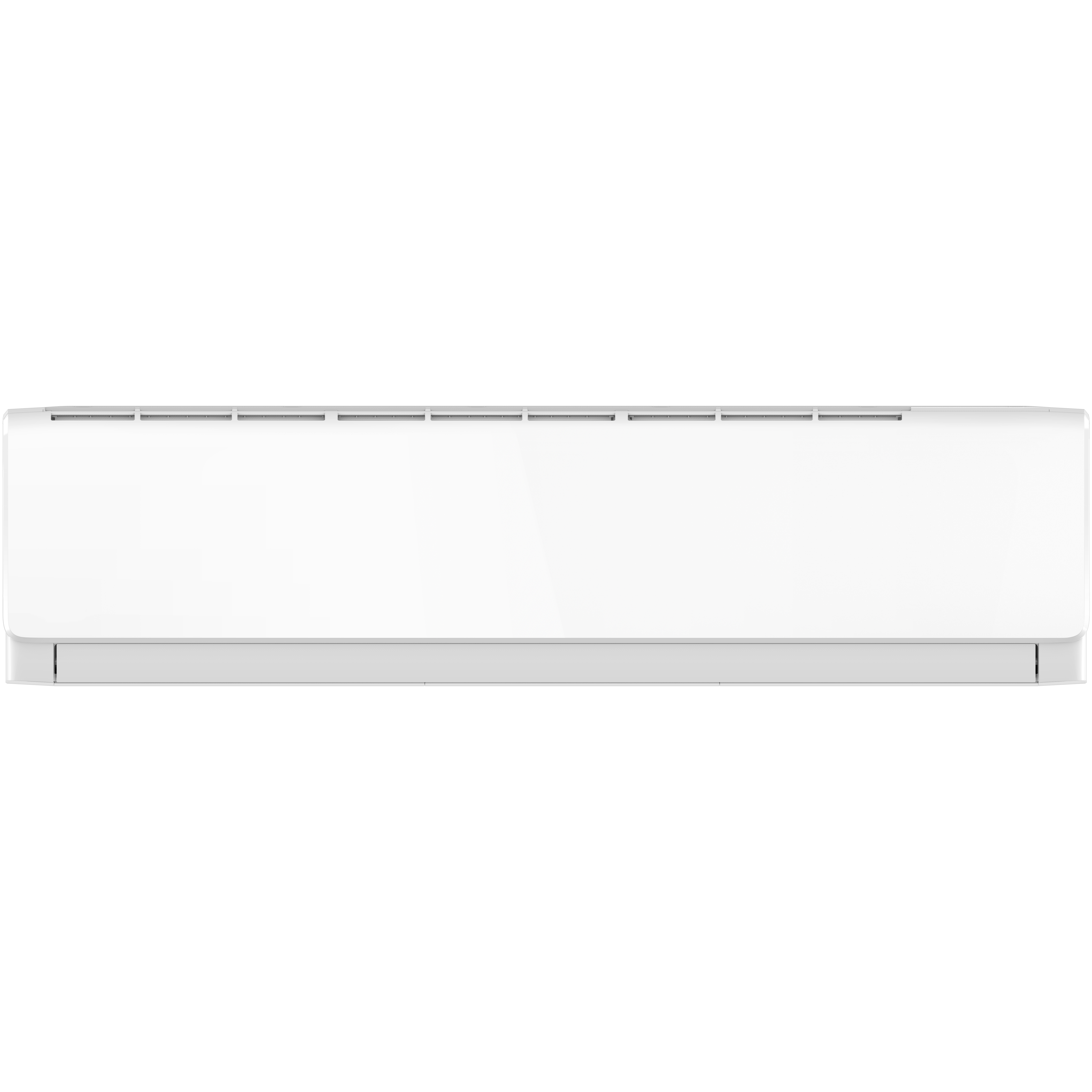

VRF Indoor Unit Model Wall Mounted C
.
Product Price
Please contact us for price inquiries.
+98114121
Description
Wired Control
Remote Controller Is Standard, And Wired Controller Is Optional. Wired Controller Can Be Fixed On The Wall To Avoid Mislaying. It’s Mainly Used For Commercial Zone And Makes Air Conditioner Control More Convenient.
2 Ways Draining Connection
Both Left And Right Sides Of Unit Are Possible For Drainage Pipe Connection, Easy For Installation.
WIFI Function
Intelligent Remote Control, Convenient Operation
Better Experience
Zanco Adopt High Density Filter, Good Quality, Filtering Effect And Easy To Clean.
Technical specifications table
Specifications
ZRVWM-H080/NR1DCA
ZRVWM-H090/NR1DCA
ZRVWM-H100/NR1DCA
ZRVWM-H110/NR1DCA
ZRVWM-H080/NR1DCA
ZRVWM-H090/NR1DCA
ZRVWM-H100/NR1DCA
ZRVWM-H110/NR1DCA
Capacity
Cooling ( kW )
8
9
10
11
Heating ( kW )
9
10
11
12
Power Supply
V~,Hz,Ph
240,50/60,1~220
240,50/60,1~220
240,50/60,1~220
240,50/60,1~220
Performance
Air Flow Volume(Hi/Mid/Low) ( m3/h )
1500/1400/1100/950
1500/1400/1100/950
1500/1400/1100/950
1500/1400/1100/950
Noise Level(Hi/Mid/ Low) ( dB(A) )
48/46/43/40/38
48/46/43/40/38
48/46/43/40/38
48/46/43/40/38
Dimensions
W Net ( mm )
1460
1460
1460
1460
D Net ( mm )
375
375
375
375
H Net ( mm )
270
270
270
270
W Packing ( mm )
1555
1555
1555
1555
D Packing ( mm )
460
460
460
460
H Packing ( mm )
377
377
377
377
Weight
Net/Gross ( kg )
23/27
23/27
23/27
23/27
Pipe Diameter
Liquid Side ( mm(inch) )
(3/8)9.52
(3/8)9.52
(3/8)9.52
(3/8)9.52
Gas Side ( mm(inch) )
(5/8)15.88
(5/8)15.88
(5/8)15.88
(5/8)15.88
Drainage ( mm(inch) )
R3/4in(DN20)
R3/4in(DN20)
R3/4in(DN20)
R3/4in(DN20)
Stuffing Quantity
20/40/40H ( Unit )
109/232/257
109/232/257
109/232/257
109/232/257
