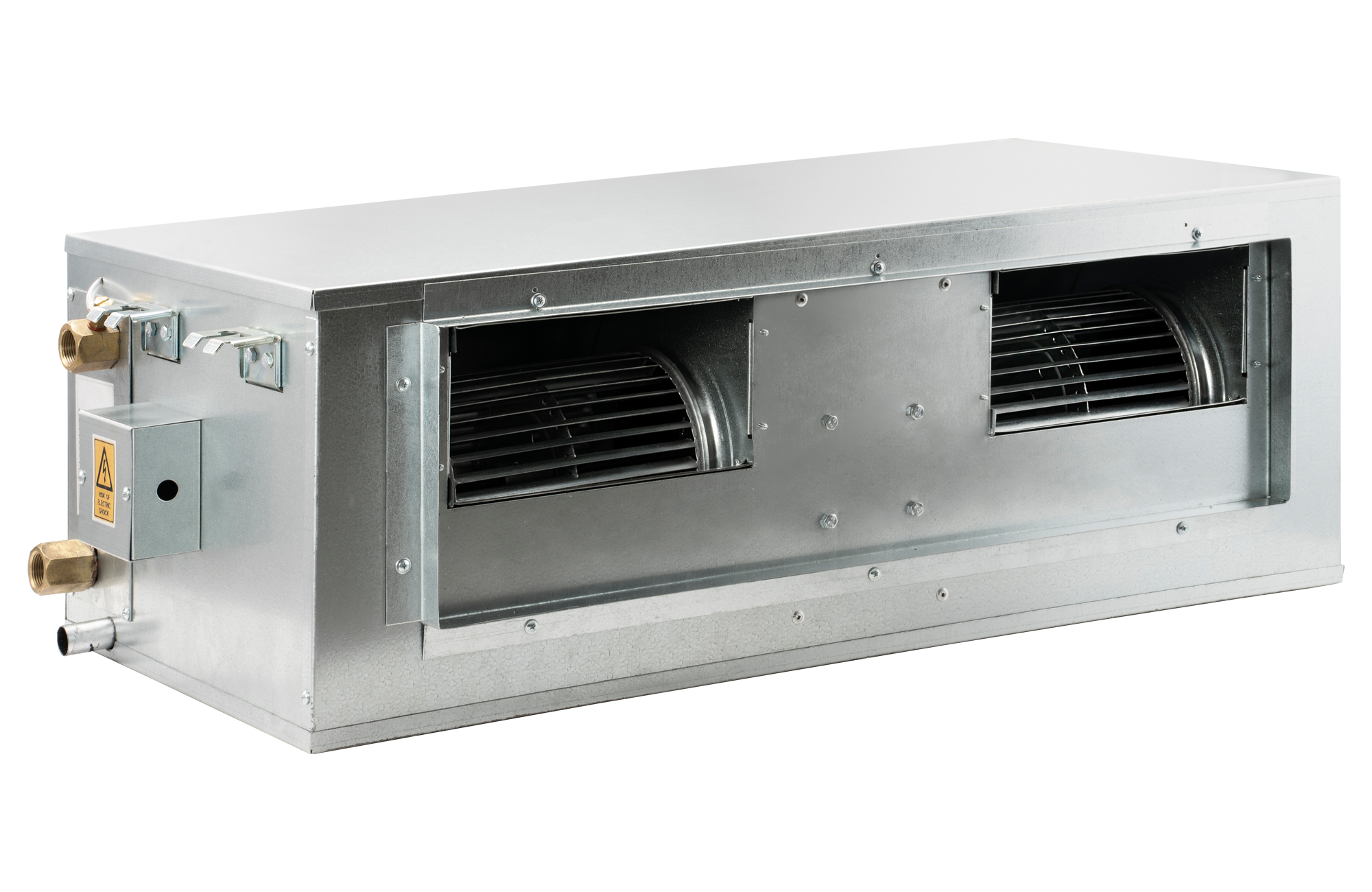

Stila Ducted Fan Coil

Capacity

600To2000 CFM

Body

Suitable Dimensions With A Height Of 30cm For Installation In The False Ceiling Of The Building

Body Forming For Greater Sheet Strength In Vibration

Small Width Of The Device And Minimal Space Occupation

Fan Position In Front Of The Device And Standard Air Throw

Filter

Dual-Layer Aluminum Filter With Strength And Washable

Filter Can Be Removed From All Four Directions Without Having To Open The Channel

Coil

4Row Coil With 3/8Inch Copper Tube And 1Inch Collector

3/4Inch Forged Brass Collector Inlet And Outlet Connection

Collector Connection To The Body To Prevent Twisting During Installation

Breathing Valve And Drain Valve

Standard Refrigeration Level

Coil Is Tested With 250psi Nitrogen Pressure.

Aluminum Fin With The Possibility Of Using Coated Sheet (BLUE FIN)

Electric Coil

All-Steel Electric Elements With Spiral Fins Can Be Used

Fan

Forward-Flow Centrifugal Metal Fan With Air Throw And Pressure Drop Tolerance Of 50Pascal

Electromotor

3Speed Electromotor From Electrogen Brand

Insulation

5mm EVA Insulation For Drain Tray And 3mm For Inner Body

Drain Tray

Galvanized Drain Tray With 5mm Elastomeric Insulation

1/2Inch Drain Outlet For Complete Water Drainage
