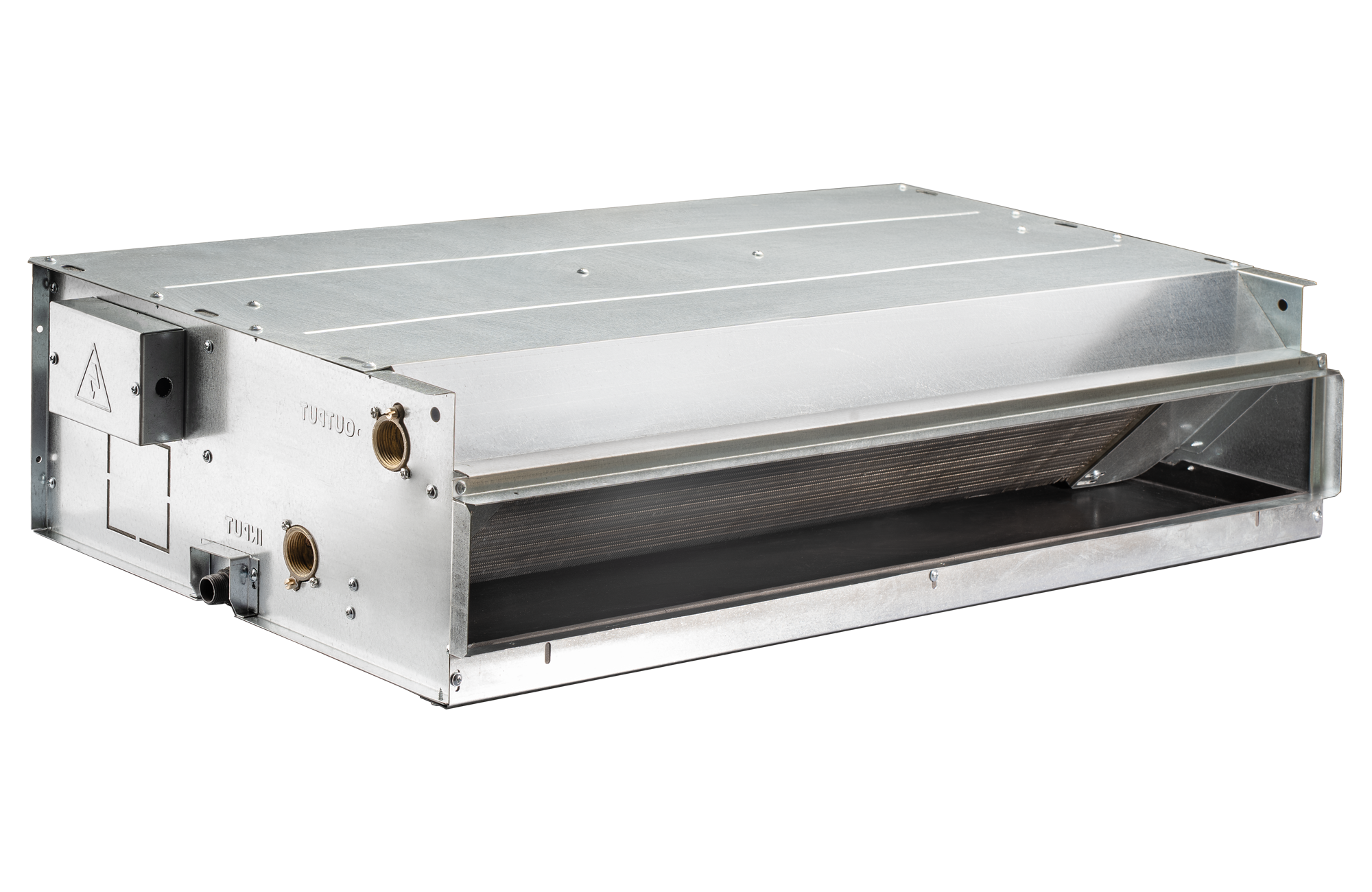

Diaco Built-In Ceiling Fan Coil

Capacity

200To1200 CFM

Body

Suitable Dimensions With A Height Of 21cm For Installation In The False Ceiling Of The Building

Body Forming For Greater Sheet Strength In Vibration

Possibility Of Adding Fresh Air To The Plenum Of The Device

Possibility Of Moving Return Air From Below To The Back Of The Device

Filter

Dual-Layer Aluminum Filter With Strength And Washable

Filter Can Be Moved From The Bottom To The Back Of The Device

Filter Can Be Easily Removed After Installation

Coil

3Row Coil With 3/8Inch Diagonal Copper Tube With Minimum Pressure Drop

3/4Inch Forged Brass Collector Inlet And Outlet Connection

Collector Connection To The Body To Prevent Twisting During Installation

Air Vent And Drain Valve

Standard Refrigeration Level

Coil Is Tested With 250psi Nitrogen Pressure

Aluminum Fin With The Possibility Of Using Coated Sheet (BLUE FIN)

Electric Coil

All-Steel Electric Elements With Spiral Fins Can Be Used

Fan

Forward Centrifugal Metal Fan With Air Throw And Pressure Drop Tolerance Of 20Pa

Electromotor

7Speed Electromotor With Aluminum Shell From Electrogen Brand

Insulation

5mm EVA Insulation For Drain Tray And 3mm For Inner Body

Drain Tray

Drain Tray With 5mm Elastomer Insulation

1/2Inch Drain Outlet On Both Sides Of The Device For Complete Water Drainage

Tray Slope For Easier Drainage

External Plastic Drain Tray Can Be Installed In All Capacities
